Full Volumetric Plume Modeling
Reconstructs full 3D plume geometry from planar cross-sections taken at multiple distances, revealing complete downstream spatial development.
Tomographic Solver · 3D Plume Volume
Computed Optical Tomography
Reconstruct complete 3D spray plumes from planar optical scans.
Import spray pattern distributions from multiple distances to build an interactive 3D model of spray spatial development.
Developed for research labs, aerospace propulsion teams, and advanced nozzle engineering groups, SprayScan 3DR transforms multi-slice 2D patternator data into continuous 3D voxel density fields. Inspect internal vortex structures, measure spray collapse, evaluate air core symmetry, and benchmark physical spray performance directly against computational fluid dynamics (CFD) grids.
512³
Voxel Matrix
OpenGL
Volumetric Engine
STL / OBJ
CAD Mesh Export

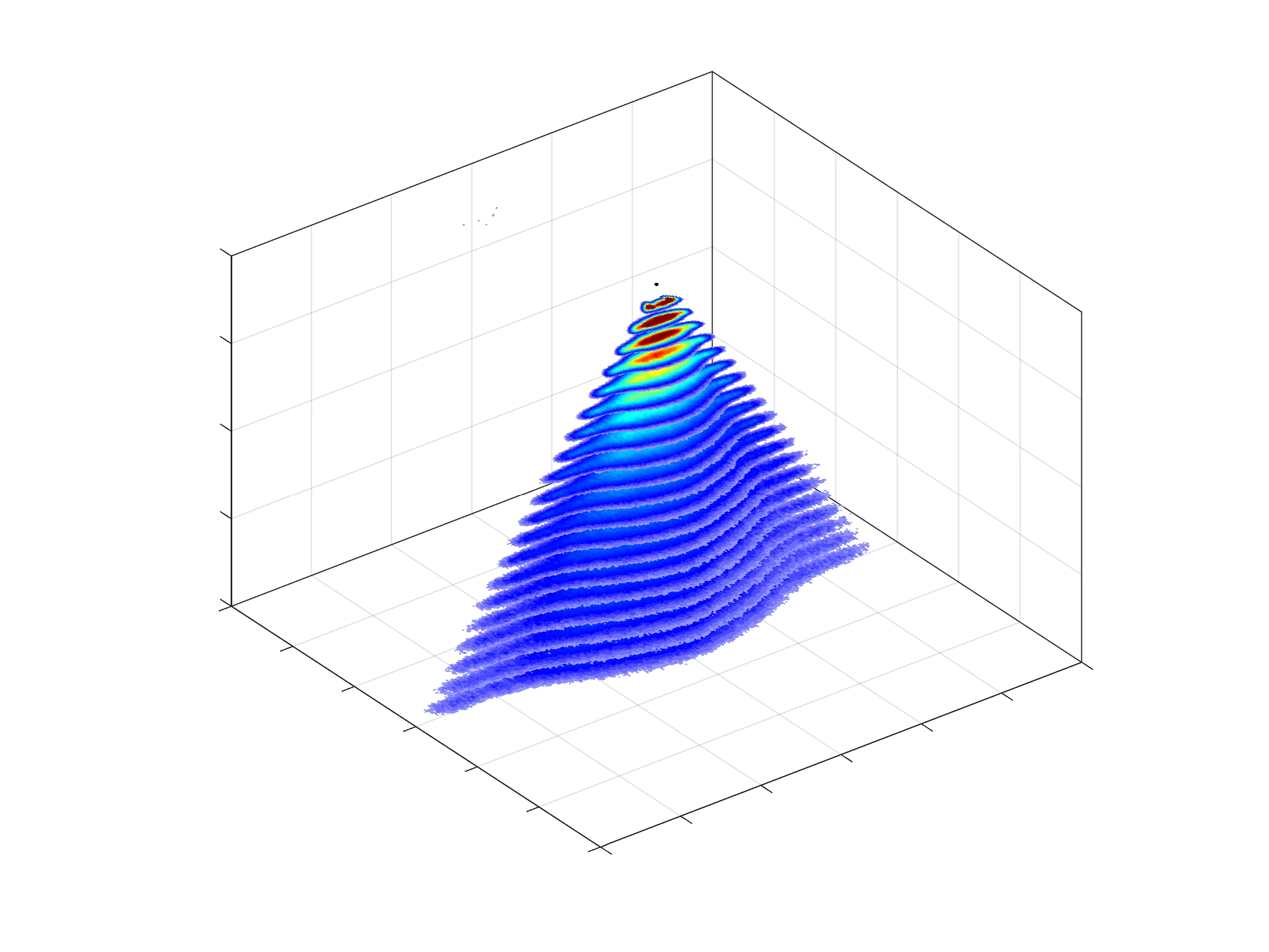

SprayScan® 3DR Engine
Volumetric Plume Reconstruction
What It Does
Volumetric Plume & Flow Analysis
Transform multi-slice optical planar scans into full interactive 3D volumetric models of spray plume formation.
Air Core & Asymmetry Analysis
Examines internal vortex structure, hollow-cone core voids, and atomization breakup zones to identify fluid skew and swirl disruption.
Swirl Dynamics · Core Integrity
CFD Validation Benchmark
Directly compares measured physical spray plumes against computational fluid dynamics (CFD) simulation grids to calibrate turbulence models.
CFD Correlation · Model Validation
CAD & Point Cloud Export
Exports spatial voxel data to standard STL solid meshes, OBJ point clouds, and raw 3D CSV matrices for downstream aerodynamic simulation.
STL / OBJ Export · Point Cloud
Engineering Specifications
3DR Technical Specifications Matrix
Built for spray research laboratories, aerodynamic simulation, and advanced nozzle engineering.
Reconstruction Algorithm
Computed optical tomographic reconstruction from multi-slice planar patternation
Spatial Voxel Resolution
Up to 512 x 512 x 512 high-resolution volumetric spatial voxel matrix
Input Pattern Formats
Rotational or multi-distance planar optical scans captured via SprayScan mPT
Volumetric Rendering
Real-time OpenGL hardware-accelerated interactive 3D viewer with clipping planes
Analysis Features
Air-core diameter tracking, plume envelope boundary, and angular deviation metrics
CAD & Mesh Export
Standard STL solid volume, OBJ point cloud, and raw 3D scalar matrix CSV
Operating Requirements
Windows 10 / 11 64-bit with dedicated GPU graphics hardware acceleration
Technical Bulletins
Bulletin B844 (Spray Analysis & Research Services)
Software Demonstration
Operating the SprayScan Suite
Volumetric 3D Plume Reconstruction & CFD Correlation.
See how planar optical scans captured by the SprayScan mPT are processed through tomographic reconstruction algorithms to reveal internal droplet structures, vortex cores, and density profiles.
- ✓ Multi-slice planar import from SprayScan mPT
- ✓ Real-time 3D rotation, slicing, and iso-surface thresholding
- ✓ Direct export to STL and OBJ 3D point clouds
SprayScan® Suite Overview (3DR Module)
Video 04:27
Documentation
3DR Technical Bulletins & Engineering Resources
Technical Bulletin
3DR Bulletin B844
Detailed technical bulletin outlining computed tomographic reconstruction algorithms, voxel tolerances, and CAD export guides.
Download PDF (B844) →
Technical Library
3D Plume Tomography Papers
Review peer-reviewed literature and experimental validations comparing optical 3D reconstruction against physical mechanical patternation.
Explore Technical Library →
Consultation
Advanced R&D Consultation
Consult with our senior research team to evaluate 3D plume modeling, spray breakup dynamics, and CFD correlation for your nozzles.
Schedule R&D Consultation →
Request Information
Evaluate 3DR for your spray laboratory.
A Spray Analysis and Research Services specialist will help you explore 3D plume reconstruction capabilities and mPT integration for your engineering team.
