Aerosol & Mist Suppression
Active suppression fan, droplet dampening material, and HEPA filtration capture aerosolized droplets, preventing hazardous mist from entering the production room.
HEPA Filtered · Zero Plant Misting
Self-Contained Mobile Diagnostics
Spray where you want, when you want — no wet lab required.
Perform nozzle quality control, tip benchmarking, and spray pattern audits directly on the manufacturing floor.
The SprayScan mTC isolates fluid aerosols completely with active mist suppression and integrated droplet dampening materials. Accommodating the SprayScan mPT Mobile Patternator directly inside its transparent viewing enclosure, operators can audit active production tips in minutes without spraying liquid onto floors or exposing personnel to airborne mists.
0.8 m³
Chamber Volume
HEPA
Mist Suppression
Mobile
Locking Castors

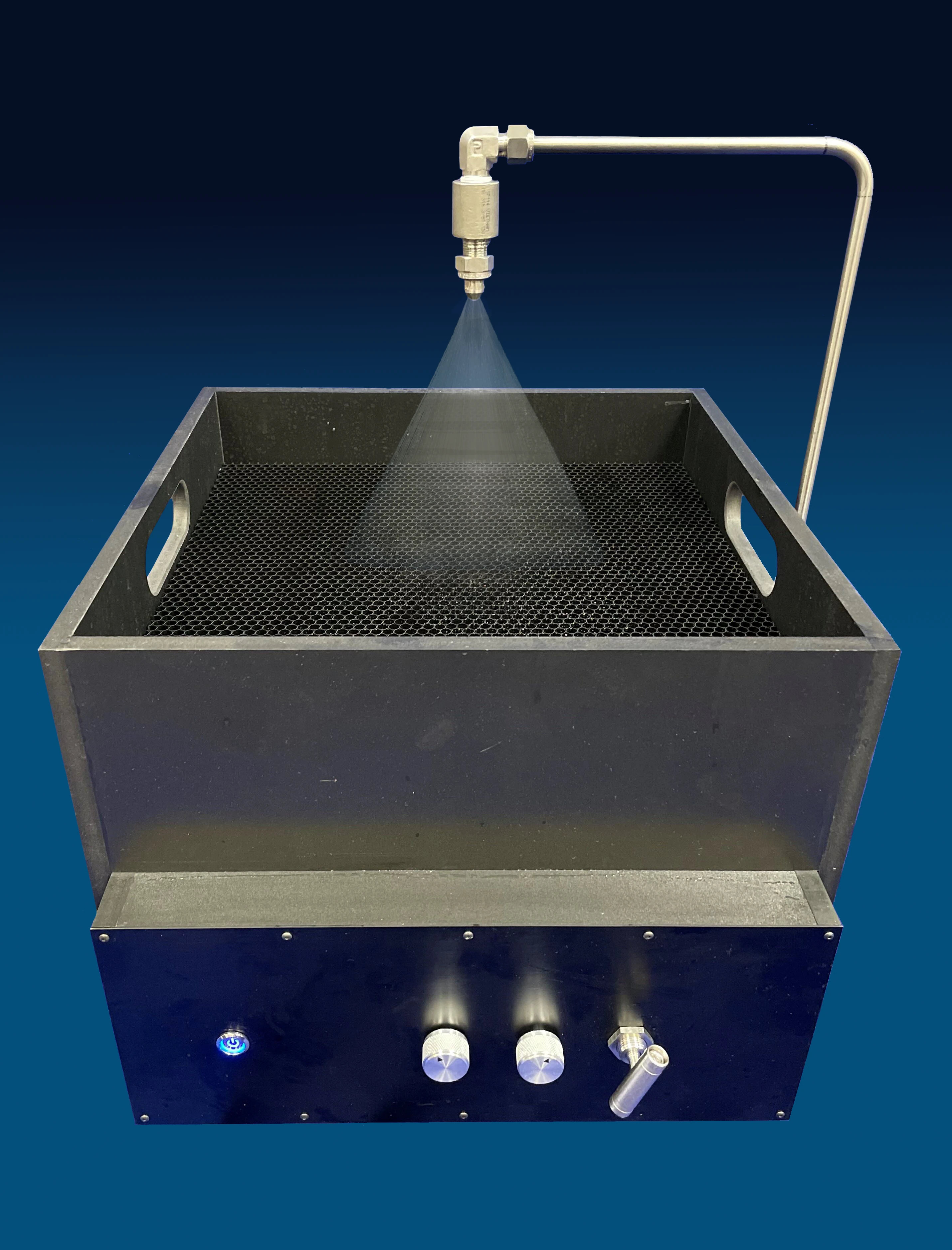

SprayScan® mTC Hardware
Contained Mobile Testing Station
What It Does
Safe, Mobile Spray Inspection
Perform nozzle quality control or testing anywhere without a dedicated laboratory or wet test bay.
mPT Patternator Integration
Internal mounting rails securely accommodate the SprayScan mPT Mobile Patternator for instantaneous quantitative pattern width, angle, and symmetry testing.
mPT Compatible · Fast Optical Scans
Integrated Recirculating Pump
Variable-speed fluid pump and closed-loop stainless steel fluid sump allow you to test water, coatings, or cleaning chemistries with minimal fluid volume.
Closed-Loop Sump · Variable Flow
Floor-to-Floor Portability
Heavy-duty locking industrial castors allow a single operator to roll the chamber between spray booths, maintenance bays, and QA auditing stations effortlessly.
Industrial Castors · Fast Relocation
Engineering Specifications
mTC Technical Specifications Matrix
Built for rapid nozzle inspection, quality assurance auditing, and clean plant floor testing.
Chamber Working Volume
0.8 m³ internal capacity with transparent heavy-duty scratch-resistant acrylic walls
Aerosol Extraction System
Integrated variable-speed blower with droplet coalescer pad and HEPA filter stage
Interior Illumination
Shadow-free high-CRI sealed LED diagnostic light array
Fluid Recovery Basin
Corrosion-resistant 316L stainless steel drain sump with quick-connect drain valve
Integrated Pump System
Internal variable-speed fluid pump with calibrated pressure & flow regulator
Mobility & Frame
Heavy-duty steel chassis on 4-wheel locking swivel industrial polyurethane castors
Physical Dimensions
1200 mm (Width) x 800 mm (Depth) x 1850 mm (Height); fits through standard doorway
Technical Bulletins
Bulletin B821 (Spray Analysis & Research Services)
Hardware Demonstration
Operating the SprayScan Suite
Contained Benchtop Testing & Nozzle Audits.
See how the SprayScan mTC creates a clean, portable testing chamber that pairs directly with the mPT Mobile Patternator for fast quality evaluations anywhere in your plant.
- ✓ Clear 360° visibility with high-CRI shadowless LED lights
- ✓ Integrated variable-speed recirculating pump
- ✓ Easy drain and recovery for testing fluid conservation
SprayScan® Suite Overview (mTC Chamber)
Video 04:27
Documentation
mTC Technical Bulletins & Engineering Resources
Technical Bulletin
mTC Bulletin B821
Detailed engineering drawings, chamber dimensions, exhaust blower curves, pump specifications, and utility connections.
Request Bulletin & Specs →
Technical Library
Nozzle Quality Control Whitepapers
Learn how leading plants establish rapid benchtop spray inspection routines to eliminate out-of-spec nozzles.
Explore Technical Library →
Consultation
Chamber Sizing Consultation
Discuss nozzle flow rates, chemical compatibility, and mPT mounting options with our testing specialists.
Schedule Chamber Consultation →
Request Information
Evaluate mTC for your testing requirements.
A Spray Analysis and Research Services specialist will help you assess chamber specifications, mist filtration, and mPT integration for your facility.
