3-in-1 Sensor Telemetry
Simultaneous continuous monitoring of manifold line pressure, fluid temperature, and volumetric flow rate through integrated high-precision sensors.
Pressure · Temp · Flow Rate
Continuous Fluid Surveillance
Protect spray process integrity and cut resource waste.
Nozzle wear is undetectable to the naked eye until thousands of dollars in water, chemicals, or defective product are lost.
The SprayScan mSM operates in active production environments, constantly tracking line pressure, fluid temperature, and flow rate. Configurable threshold limits trigger local beacon alerts and send immediate telemetry over Modbus or MQTT, allowing maintenance teams to swap worn nozzles or resolve pressure drop issues before process specifications are compromised.
3-in-1
P · T · Q Telemetry
100 bar
Pressure Rating
IP66
Stainless Build

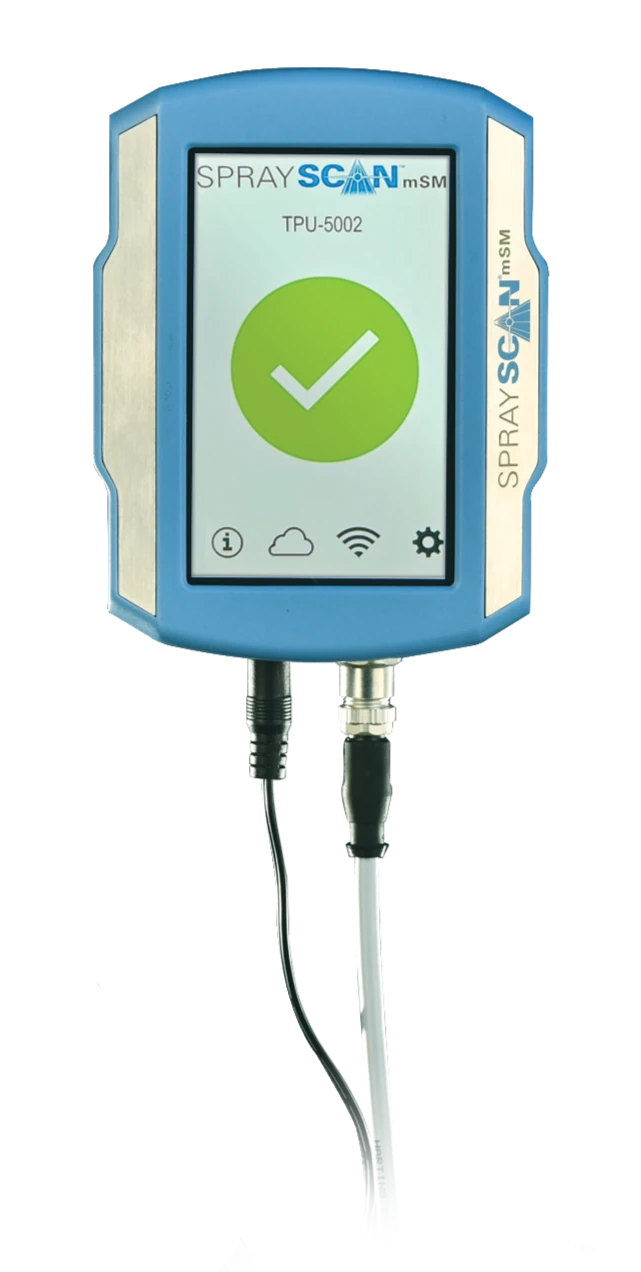

SprayScan® mSM Hardware
Fluid Telemetry Monitor
What It Does
Continuous Fluid Telemetry & Waste Prevention
Continuous process telemetry prevents wasteful fluid surges, uncovers hidden tip erosion, and ensures sustainability compliance.
Instant Out-of-Spec Alerting
Local high-contrast status LEDs and digital industrial network alarms trigger immediately when pressure or flow rates deviate from safe process limits.
Limit Alarms · Rapid Response
Waste & Sustainability Tracking
Quantifies cumulative excess chemical, coating, and water consumption caused by nozzle orifice wear, pressure spikes, and unmonitored line leaks.
Resource Tracking · ESG Metrics
Plug-and-Play Quick Connect
Easily splices into existing fluid supply lines with standard NPT, BSPT, or sanitary tri-clamp fittings, requiring zero complex plumbing modifications.
Tri-Clamp / NPT · Minimal Downtime
Engineering Specifications
mSM Technical Specifications Matrix
Built for continuous industrial monitoring, harsh spray washdowns, and factory network integration.
Operational Pressure Range
0 to 100 bar (0 to 1,450 psi) standard industrial range
Volumetric Flow Range
0.1 to 200 L/min configurable turbine or magnetic induction sensors
Fluid Temperature Range
-20°C to +120°C (-4°F to +248°F) continuous process limits
Industrial Telemetry Output
Onboard non-volatile data logger with live Modbus TCP and MQTT outputs
Local Visual Indicators
High-contrast digital OLED screen with tri-color status alarm LEDs
Enclosure Protection
IP66 / NEMA 4X rated corrosion-resistant 316L stainless steel
Process Connections
Standard 1/2" or 1" NPT / BSPT threads or sanitary tri-clamp fittings
Technical Bulletins
Bulletin B805 (Spray Analysis & Research Services)
Hardware Demonstration
Operating the SprayScan Suite
Continuous Fluid Parameter Monitoring in Action.

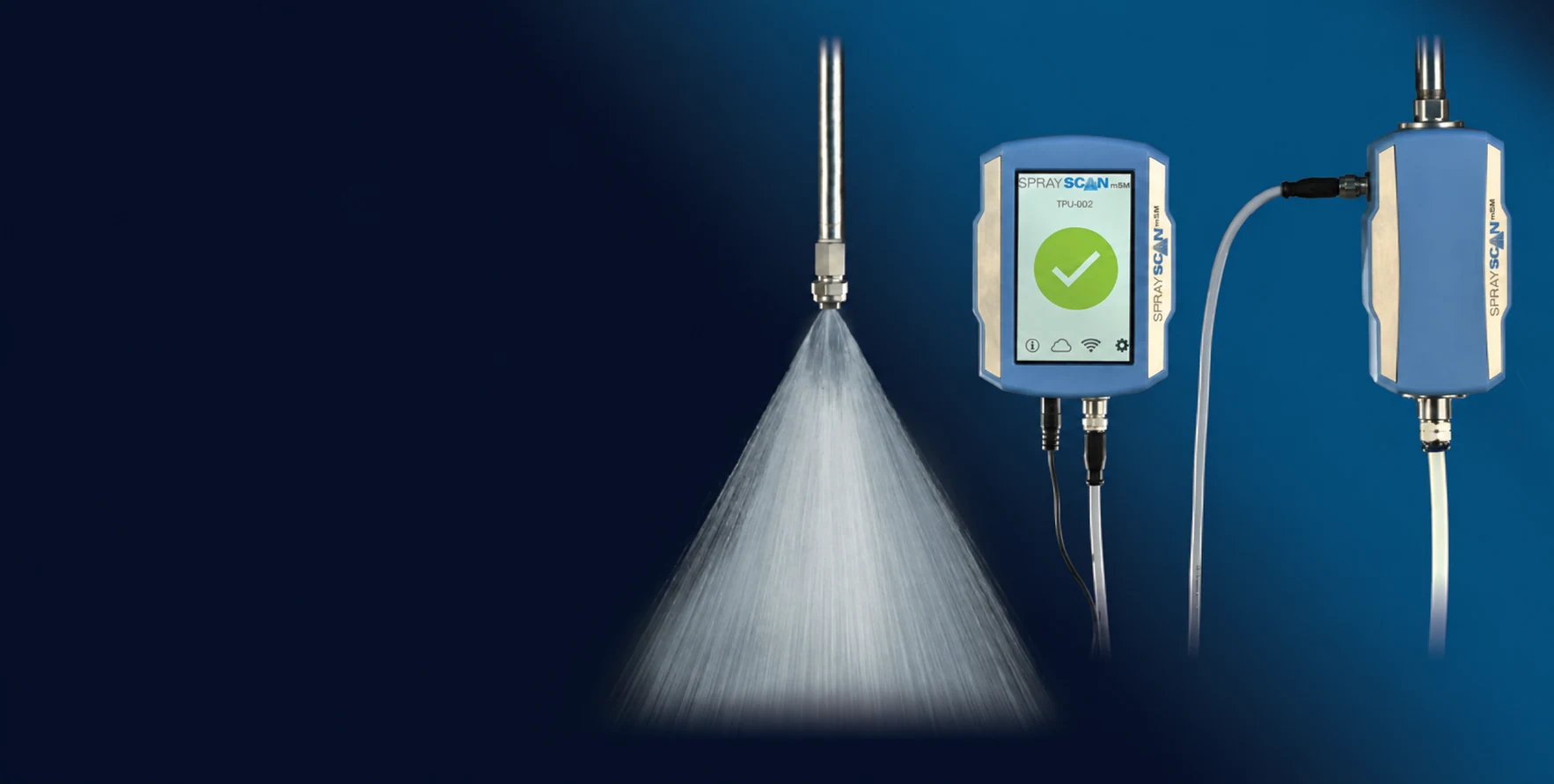

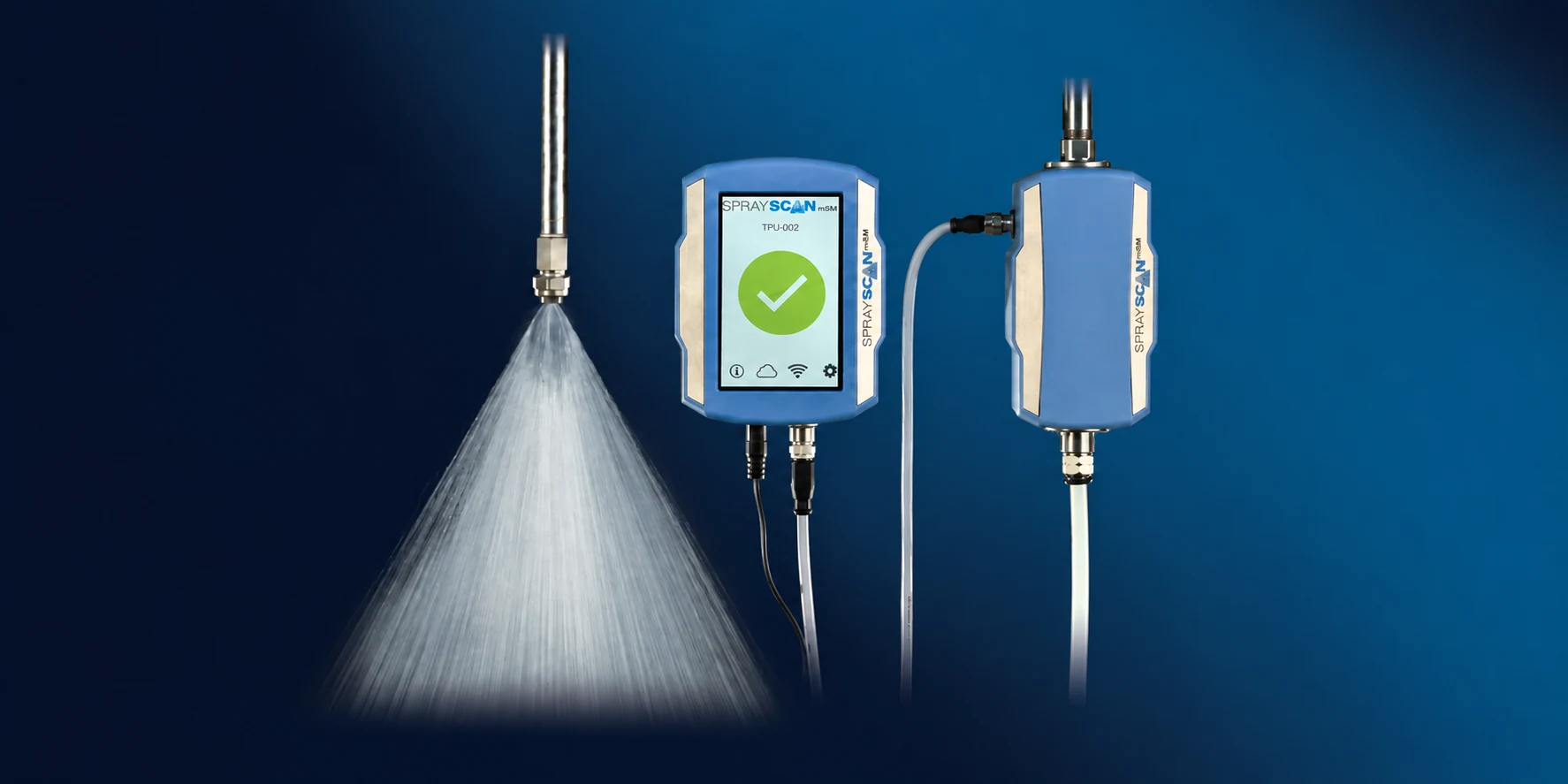

See how the SprayScan mSM hardware installs into active fluid lines, delivering real-time pressure, flow, and temperature telemetry directly into your control architecture.
- ✓ High-precision pressure transducer up to 100 bar
- ✓ Live Modbus TCP & MQTT telemetry output
- ✓ Immediate detection of pump cavitation, clogged strainers, or nozzle wear
SprayScan® Suite Overview (mSM Telemetry)
Video 04:27
Documentation
mSM Technical Bulletins & Engineering Resources
Technical Bulletin
mSM Bulletin B805
Detailed engineering drawings, sensor ranges, electrical pinouts, communication registers, and mounting diagrams.
Download PDF (B805) →
Webinar Recording
mSM Technical Webinar
Watch our engineering team explain how continuous fluid monitoring reduces chemical consumption and prevents unexpected downtime.
Watch mSM Webinar →
User Guide
mSM User Manual
Complete hardware wiring, sensor manifold plumbing, Modbus/Ethernet communication registers, and touchscreen calibration guide.
Download Manual PDF ↗
Consultation
Process Telemetry Scoping
Review your fluid manifold pressures, temperatures, and data bus requirements with our spray monitoring specialists.
Schedule Scoping Call →
Request Information
Evaluate mSM for your fluid process.
A Spray Analysis and Research Services specialist will help you assess sensor plumbing options, industrial communications, and ROI for your continuous line.
